AZZ M - 4257

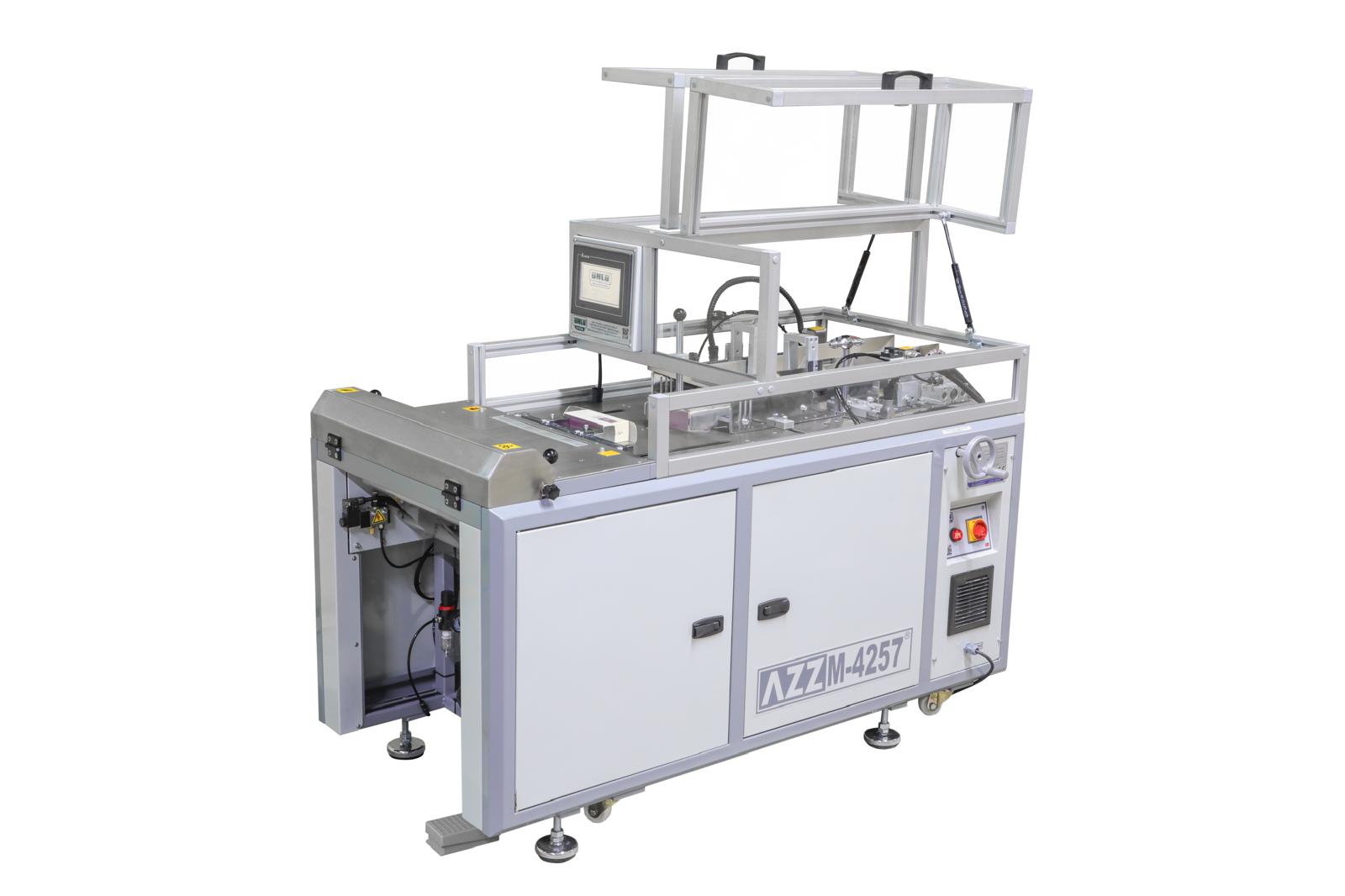

AZZ M - 4257 | Semi-automatic Servo system Perfume, Cosmetic, Pharmaceutical, Chewing Gum, Hookah and Tea Box

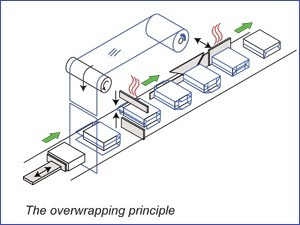

Our machine semi-automatically packs square and rectangular shaped small, medium and large volume boxes within the dimensions specified below, in one piece or in rows side by side in envelope type packaging model. It is an economical machine that you can use as a joker in your operator-friendly solution-oriented production area, which is practical, ideal, and many settings can be made via a PLC with encoder system from the Touch screen, and sensitive packaging size adjustment can be made with a servo motor in mold change.
| Machine Dimensions | H110 x W100 x L150 cm |
| Weight | 320 Kg / 350 Kg |
| Power | 1.5 kW, 380/400 VAC 2 Phase 50/60 Hz. |
| Air consumption | 6 bar / dk |
| Noise Level | 30-40 desibel |
| Capacity per.min. | 7-12 adet/piece according to operator |
| Package dimensions | |
| Length ( A ) | Min:50mm / Max:320mm |
| Width ( B ) | Min:30mm / Max:120-160mm |
| Height ( C ) | Min:20mm / Max:80-100mm |
| OPP,BOPP,PVC Length By touchpanel opp length adjusting | Min:140mm /Max:420-570mm |
| PACKAGING STYLE | DOT SEALING FOR PERFUME |
 |   |

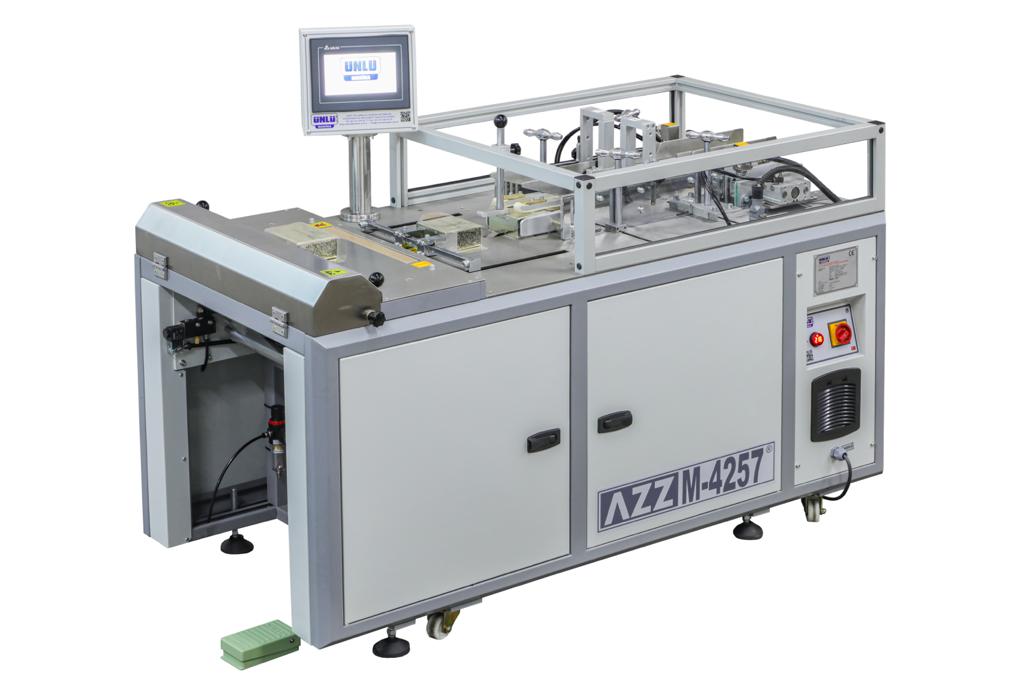

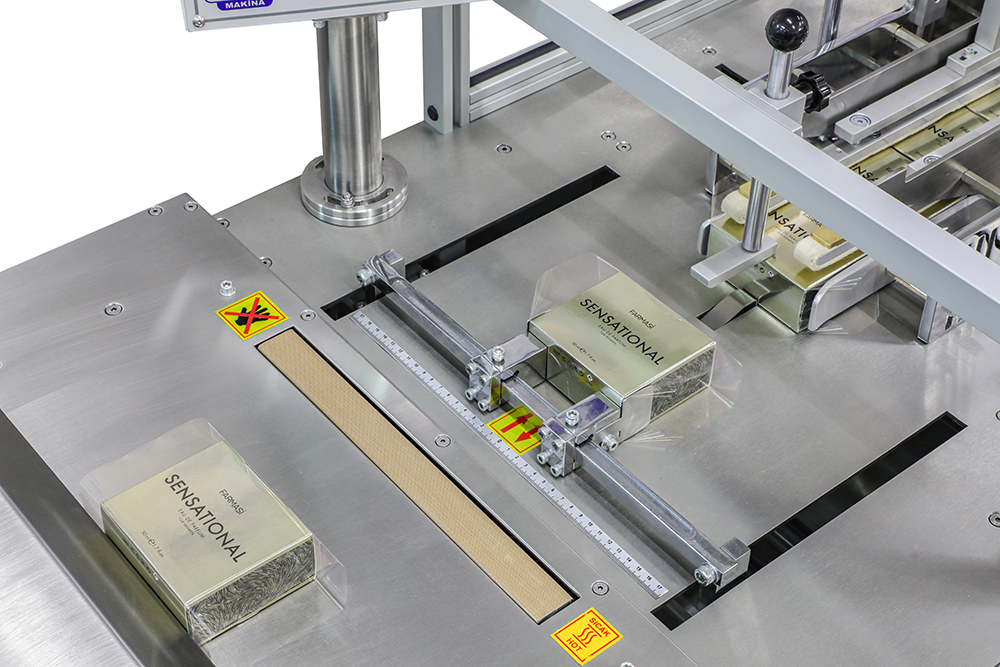

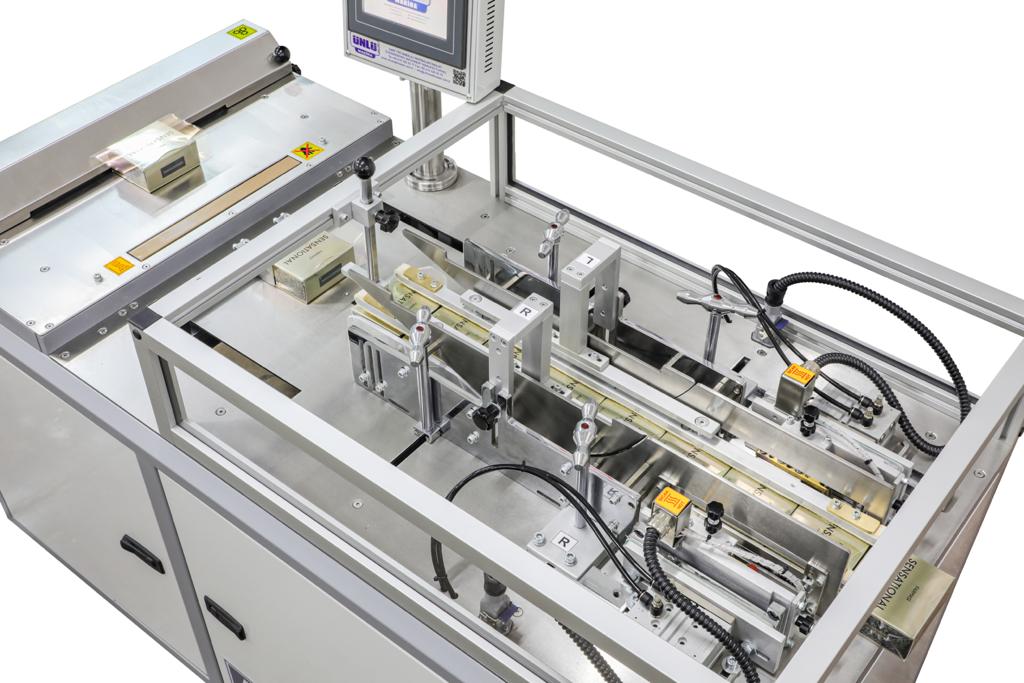

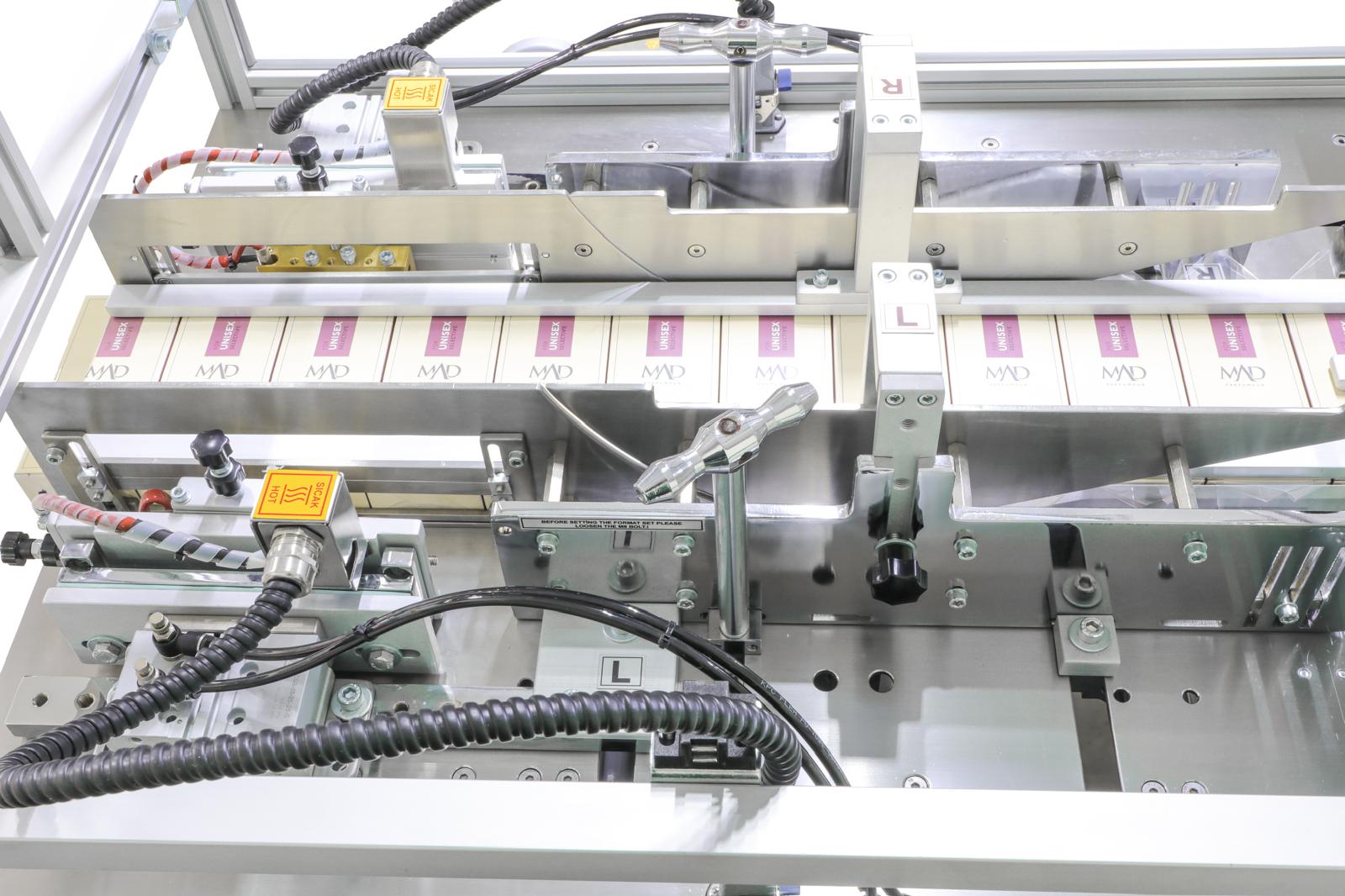

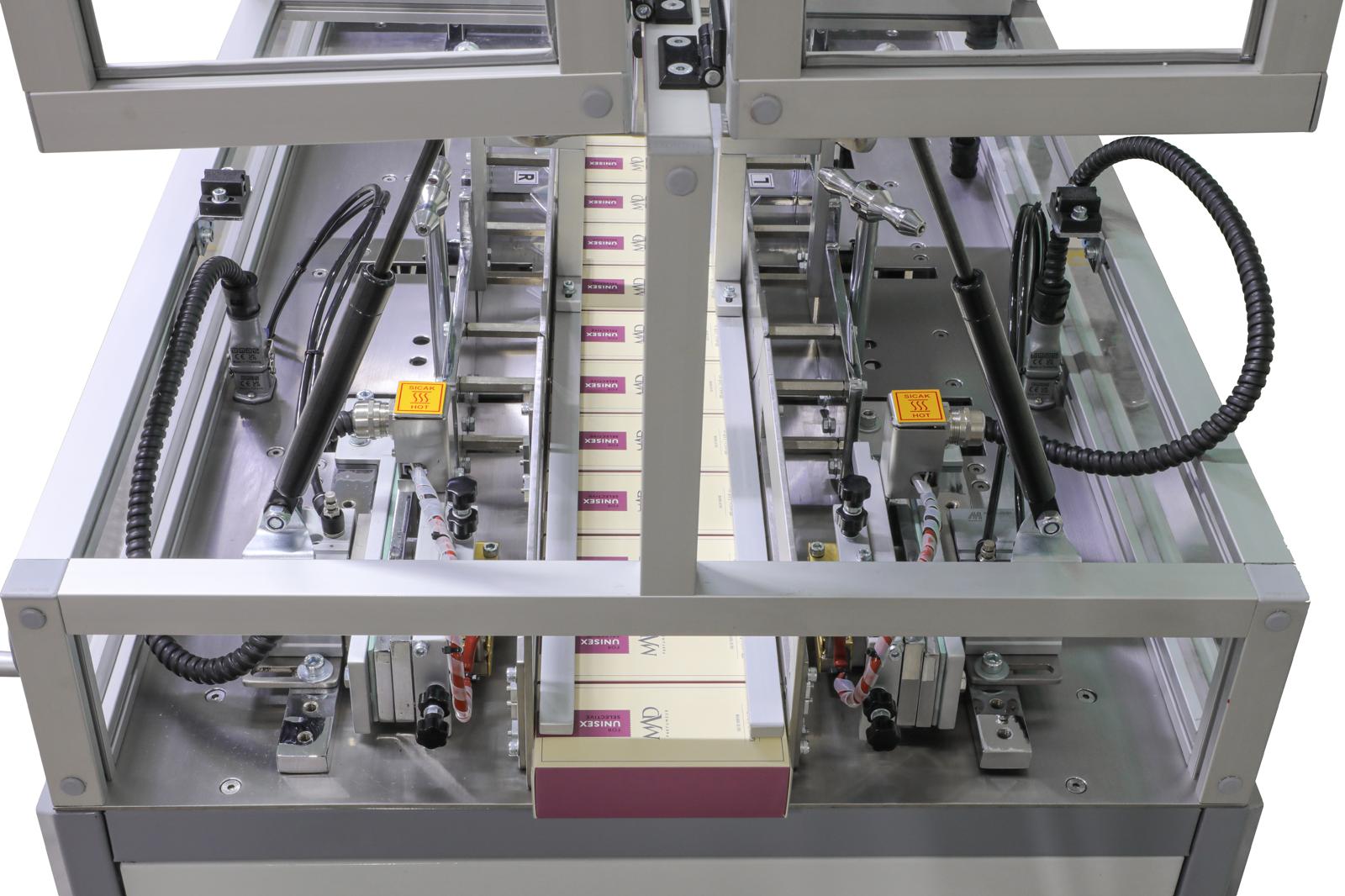

Machine Detail

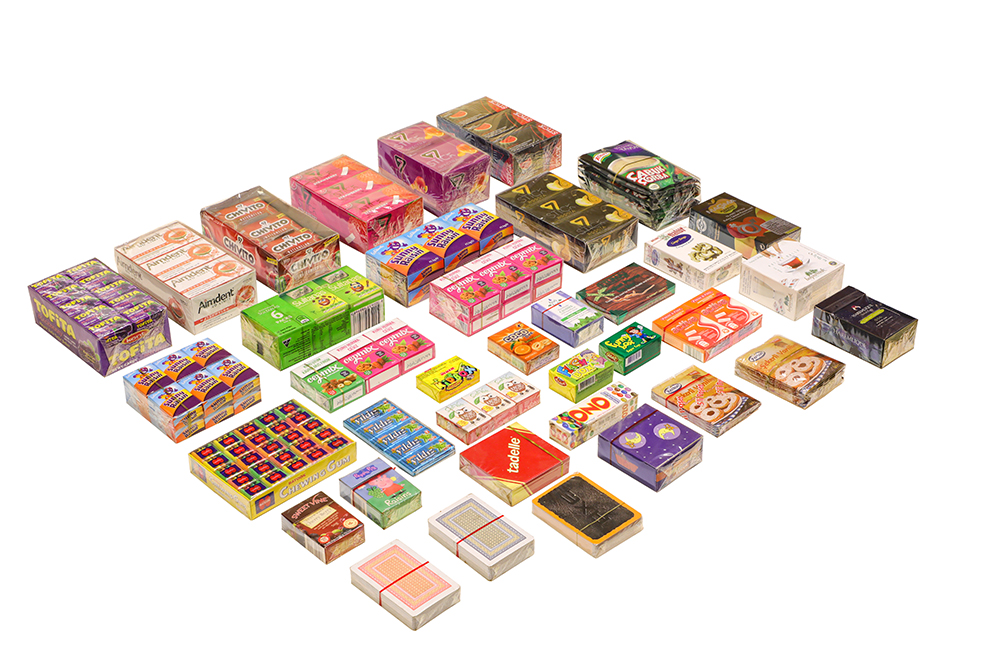

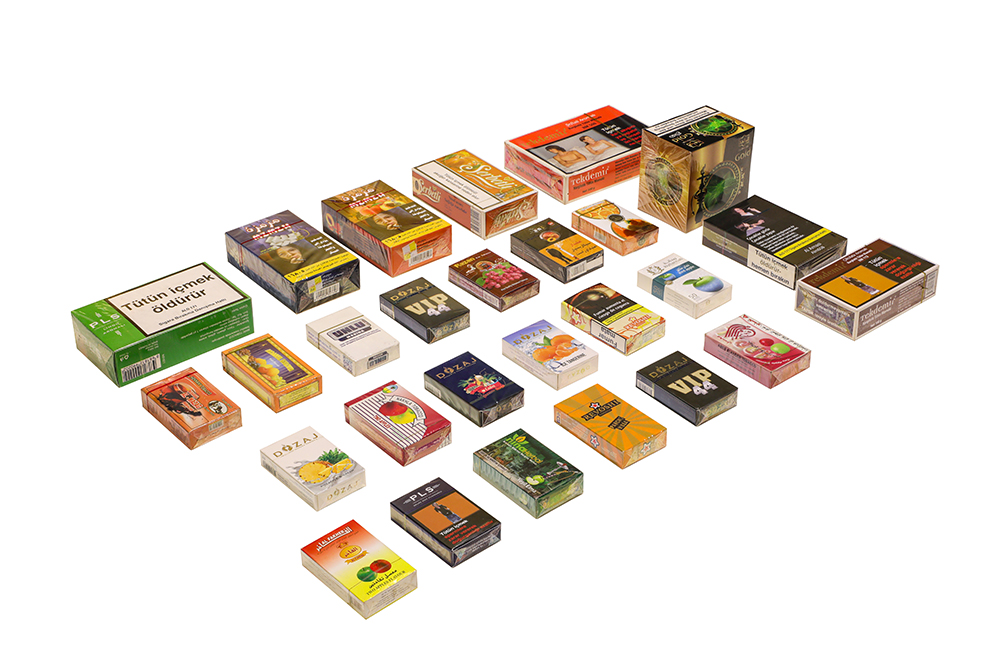

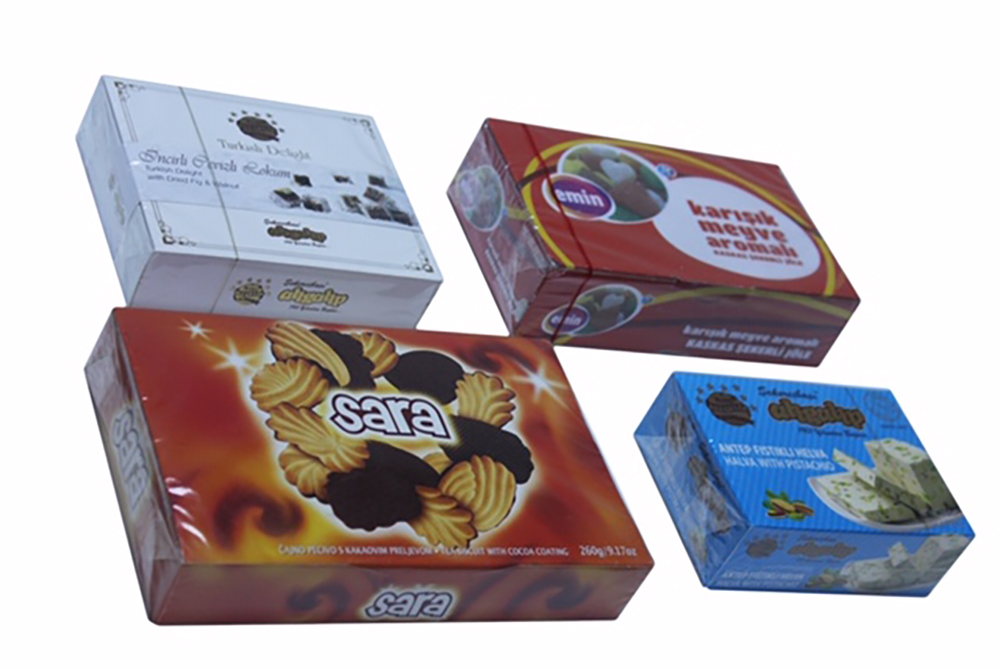

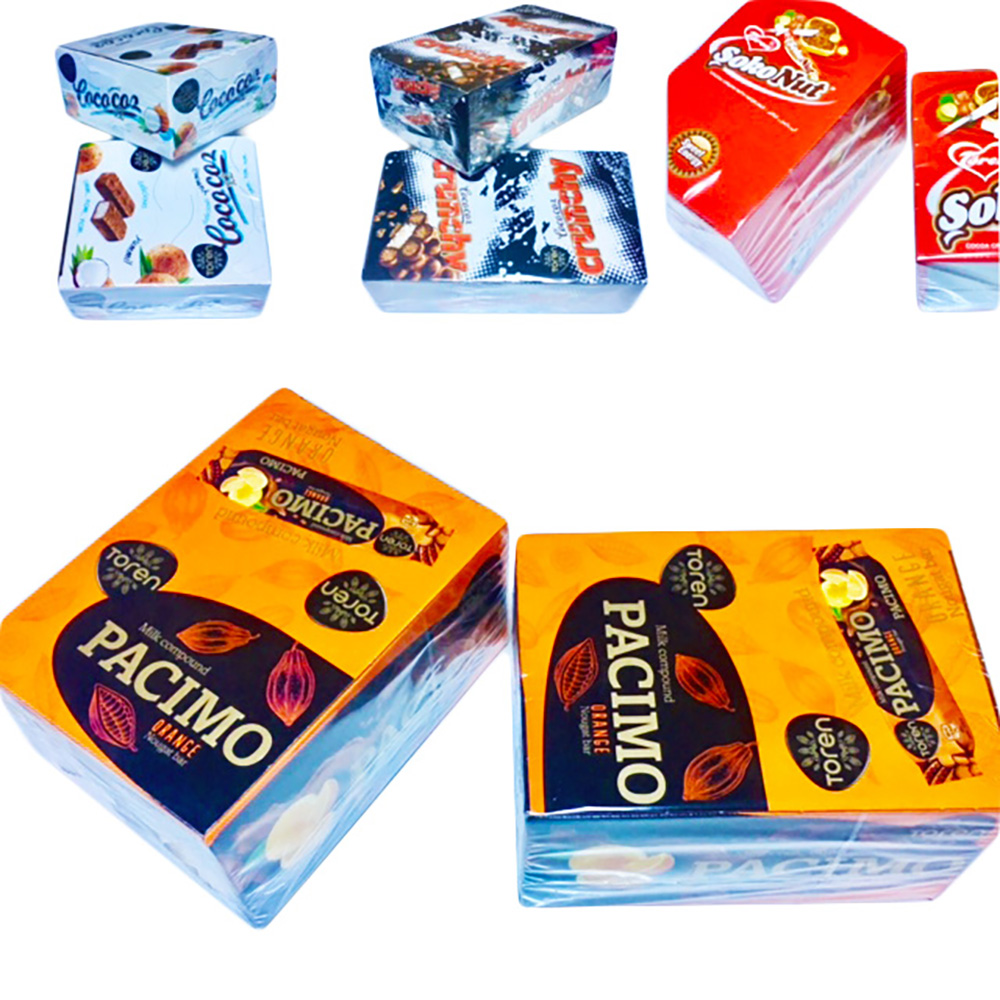

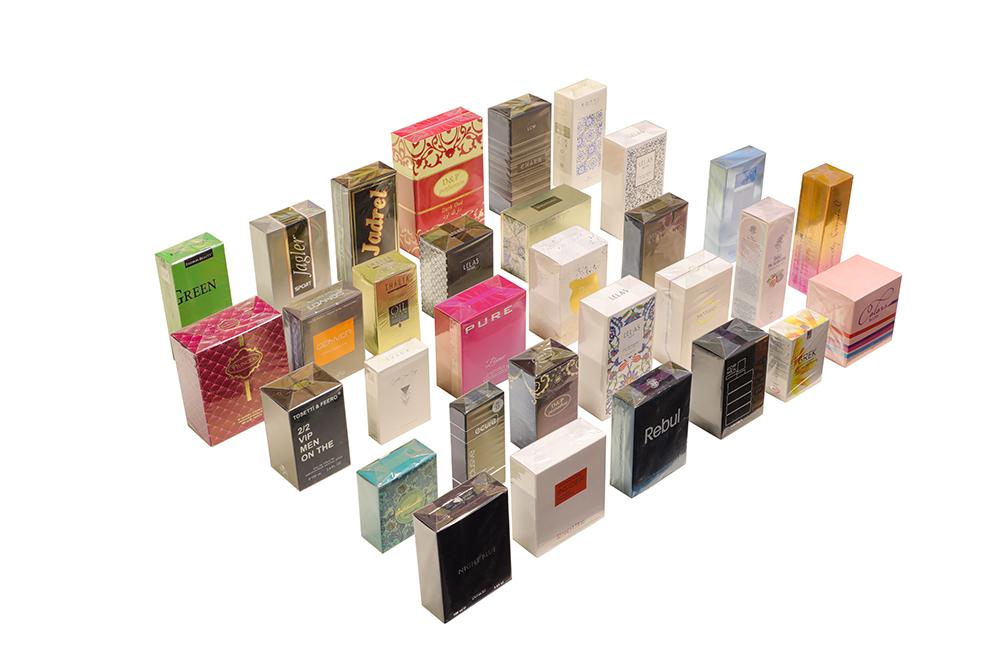

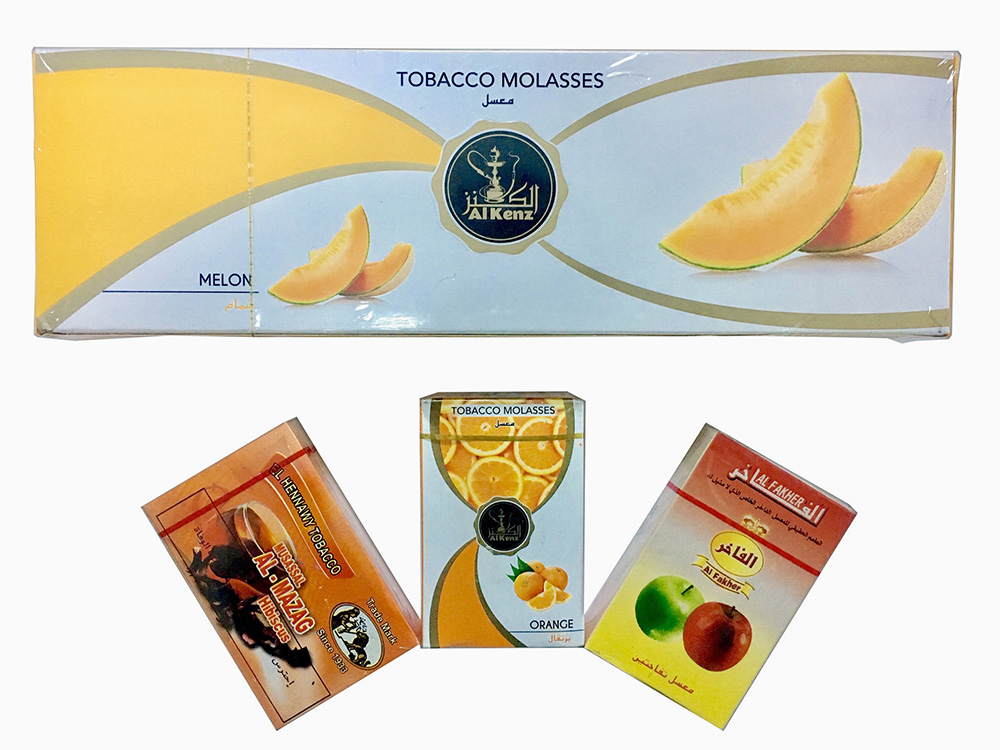

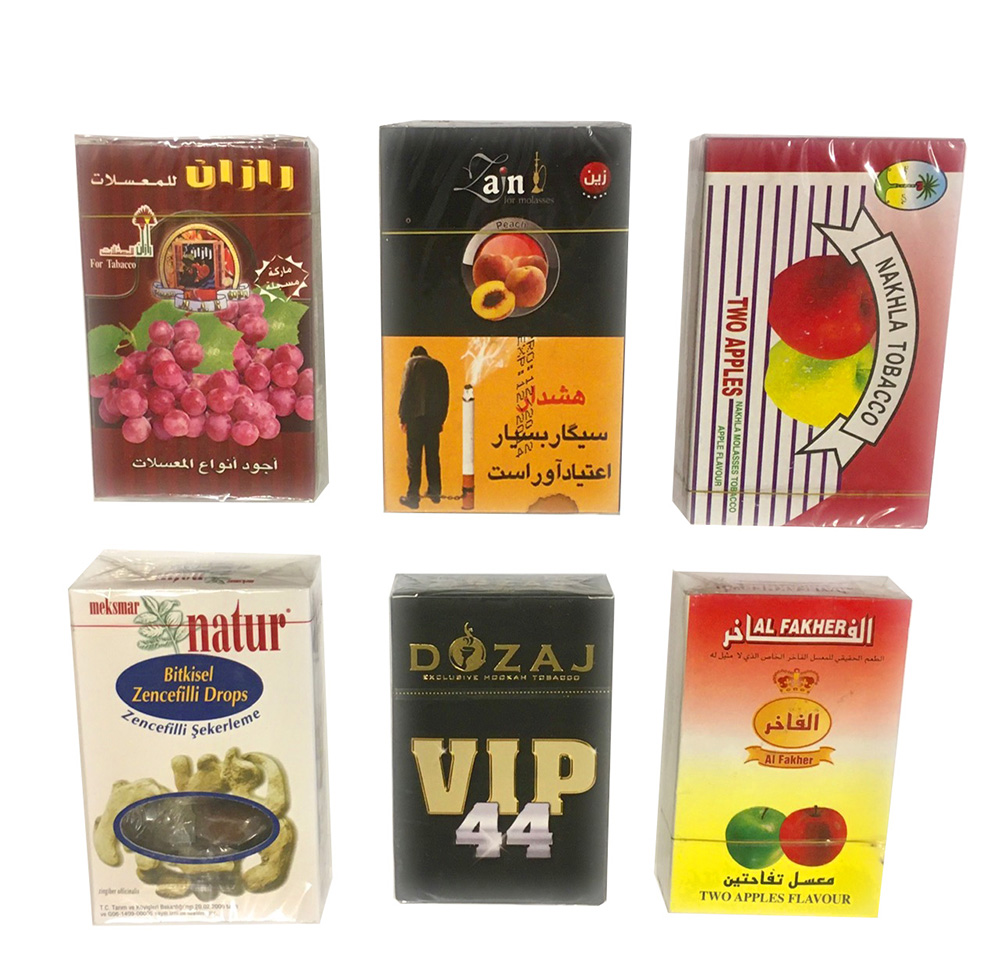

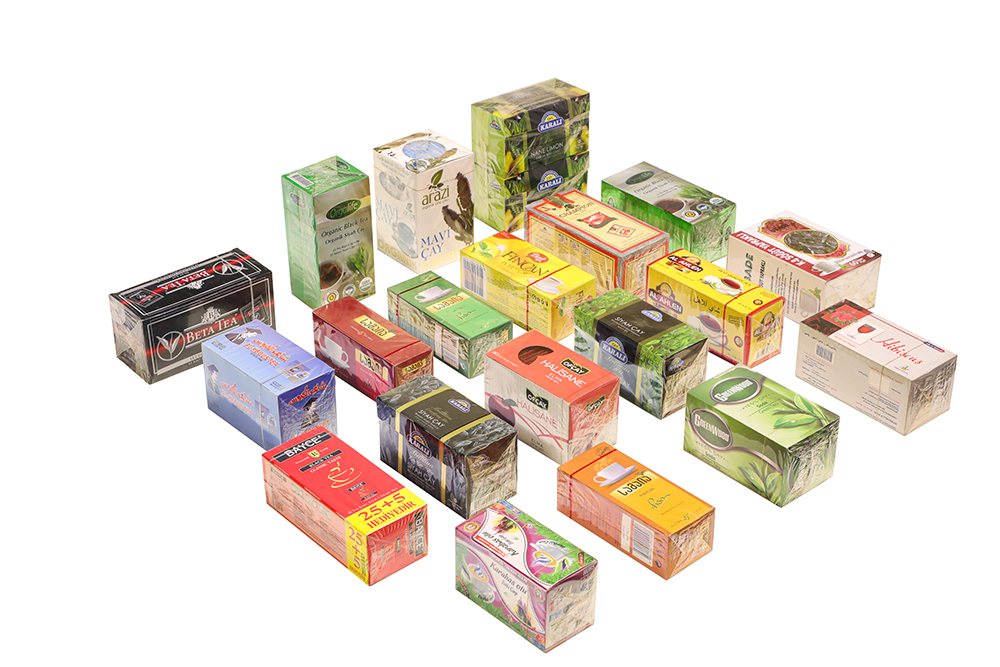

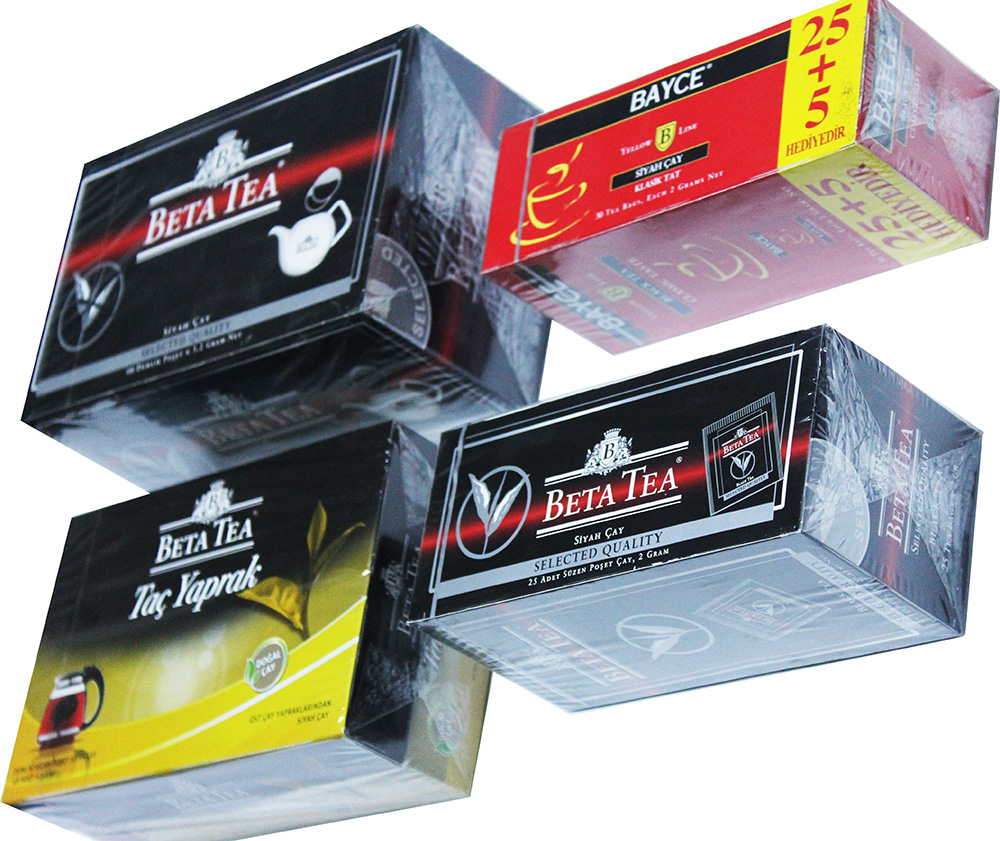

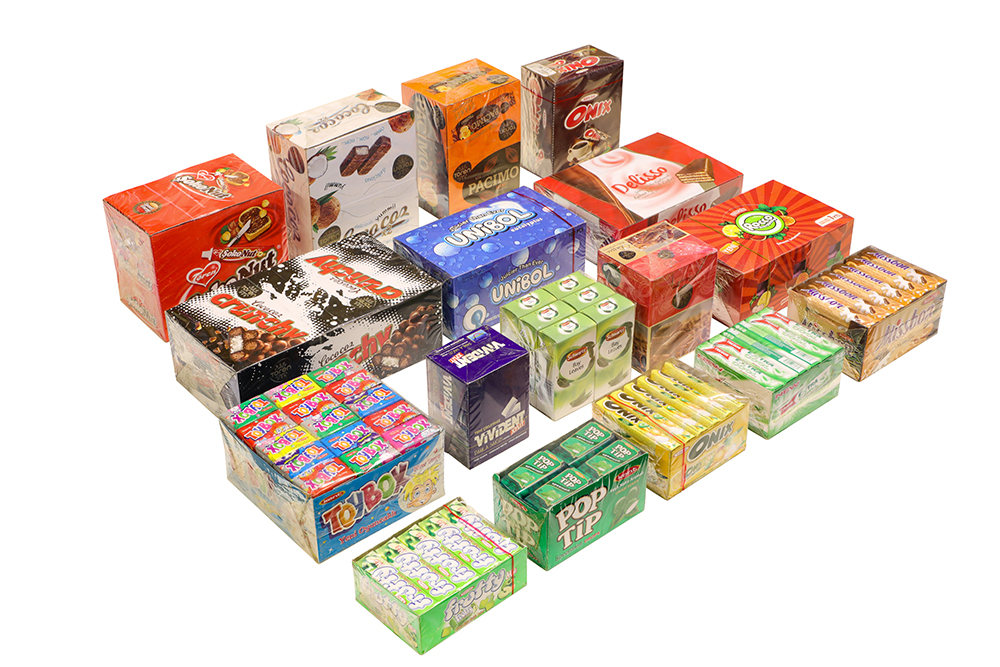

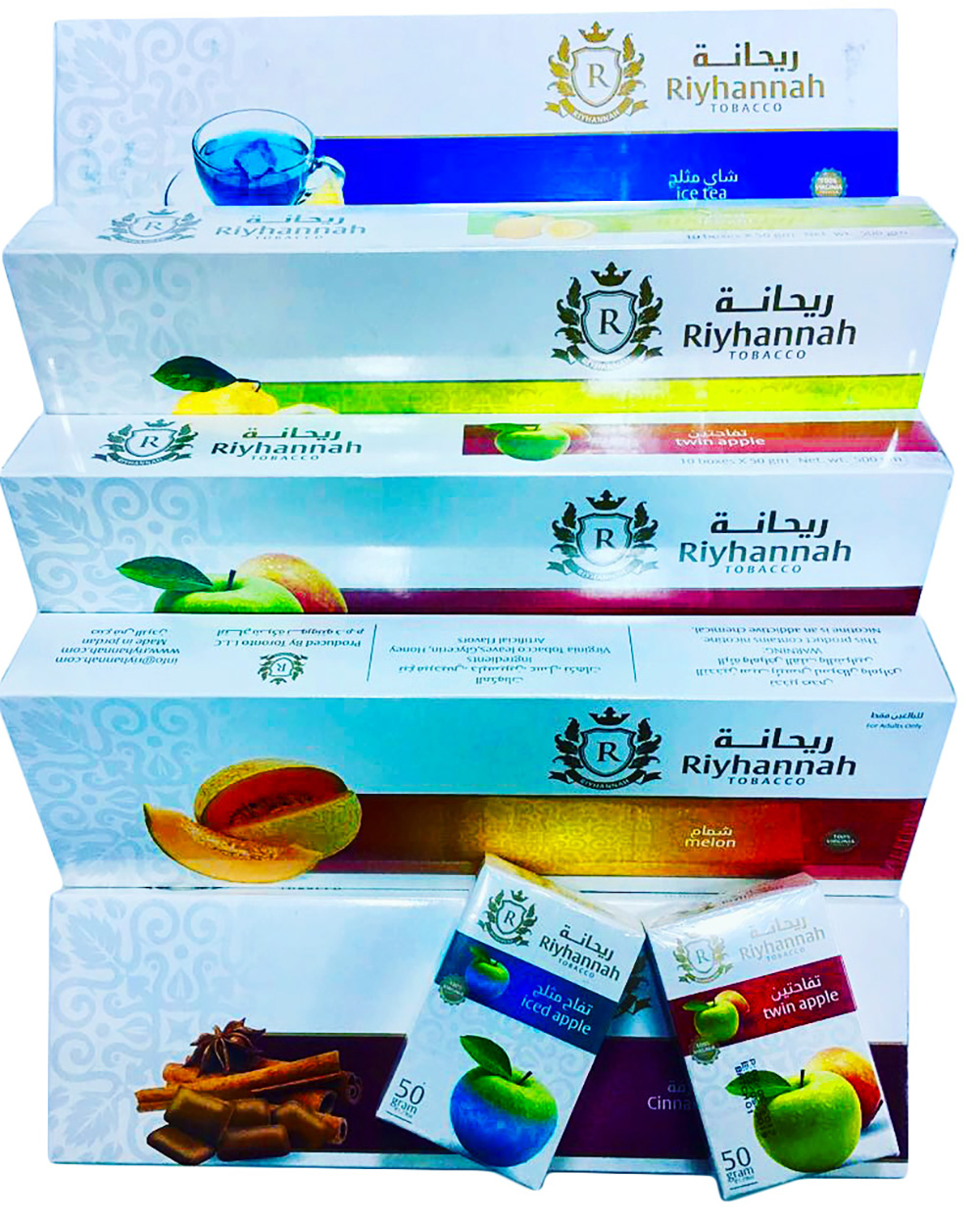

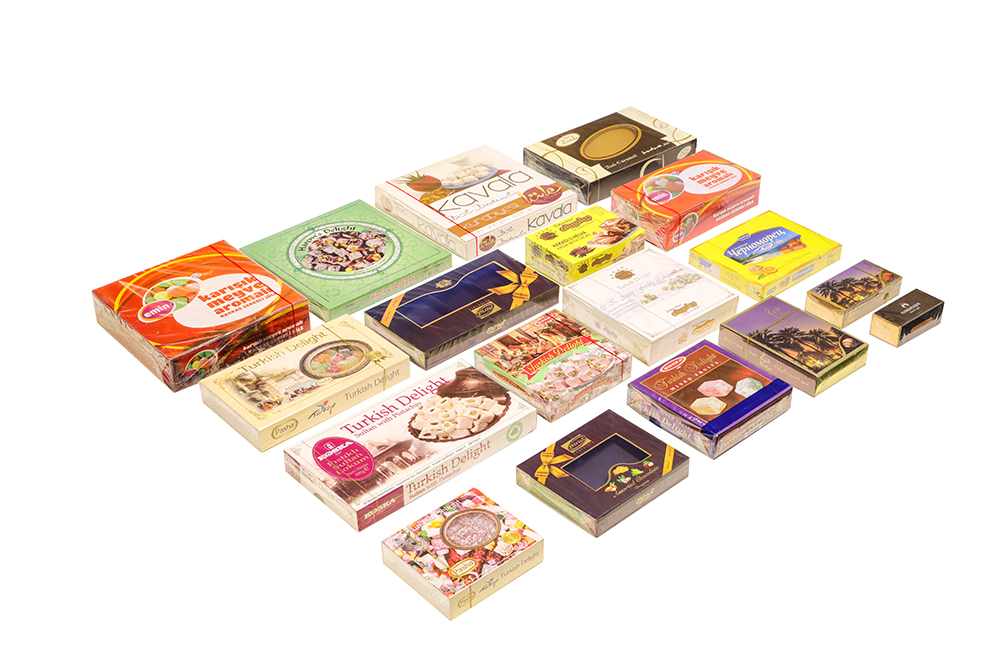

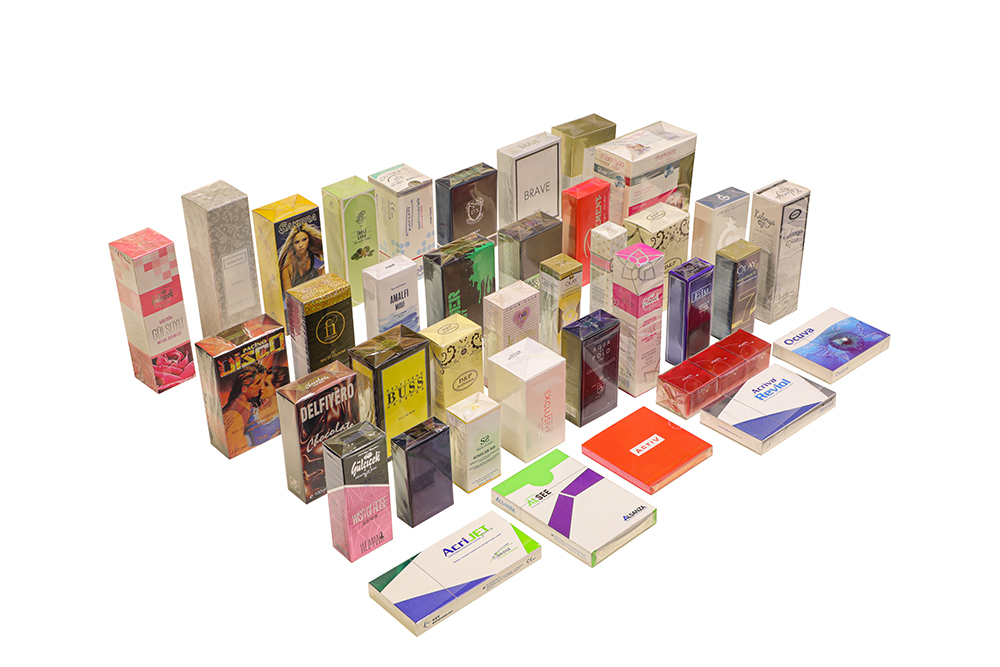

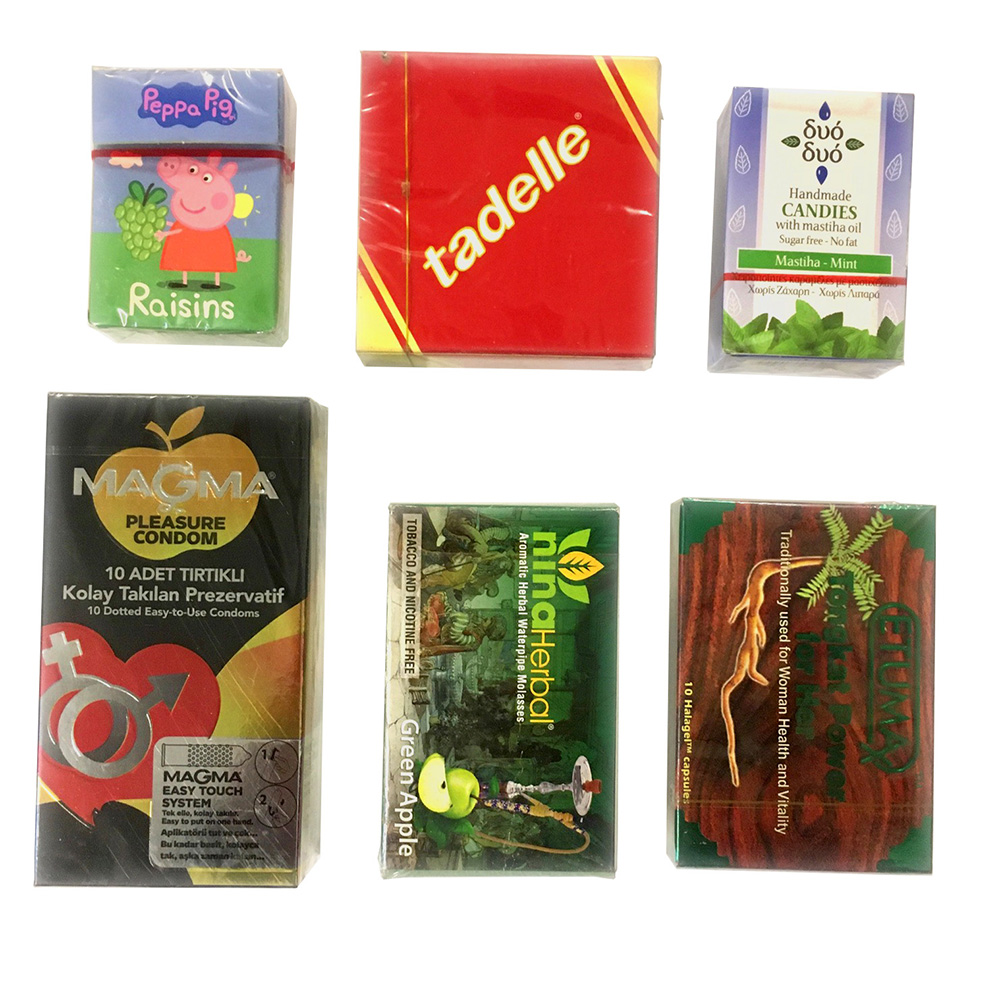

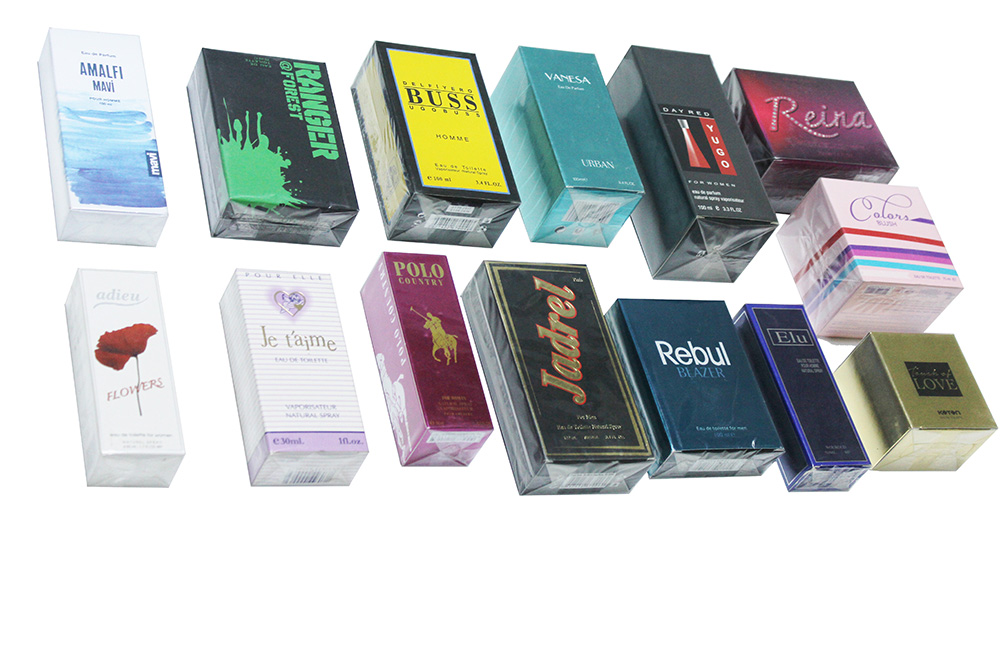

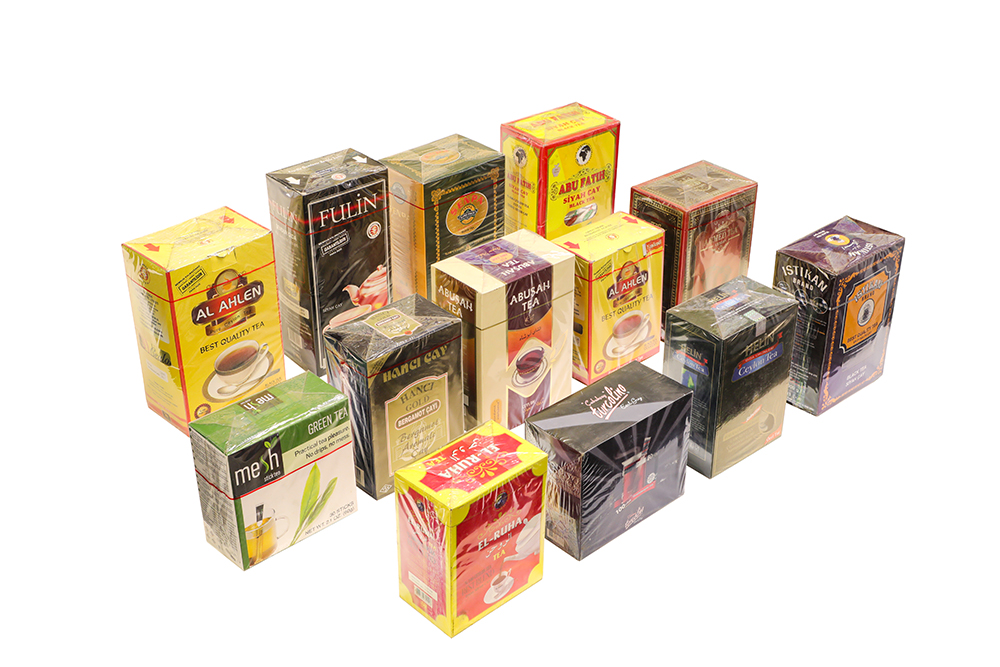

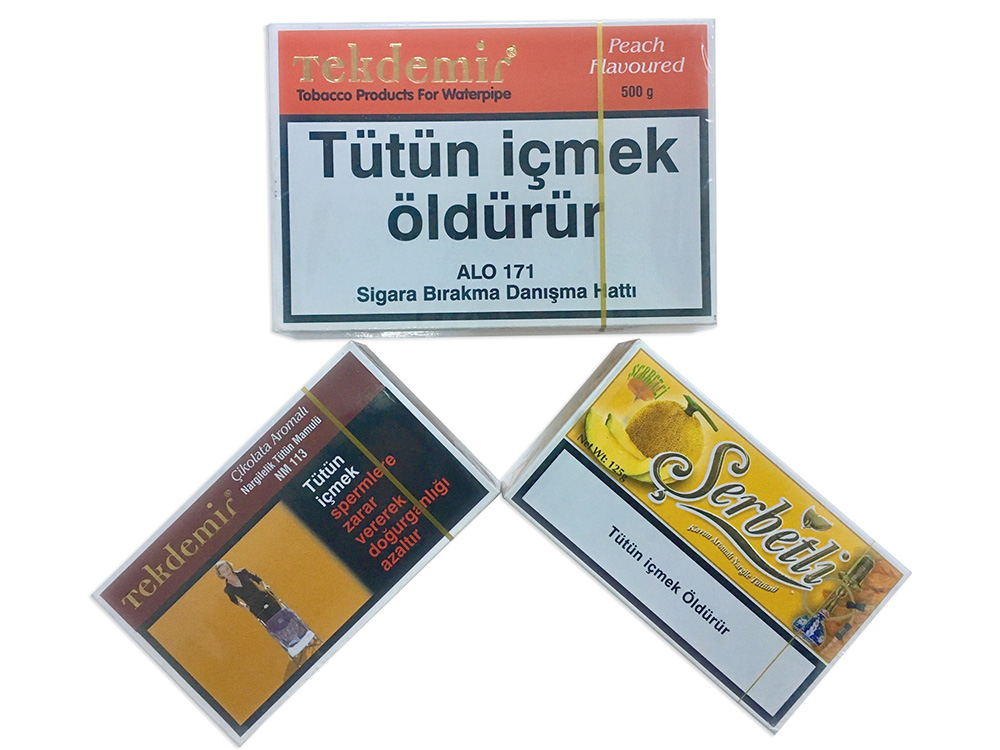

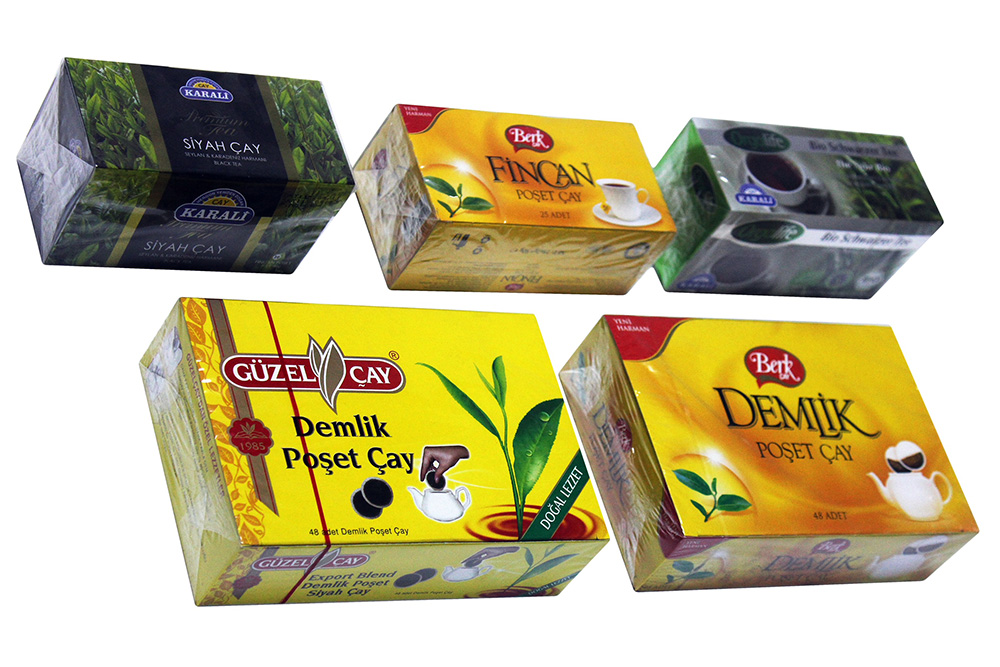

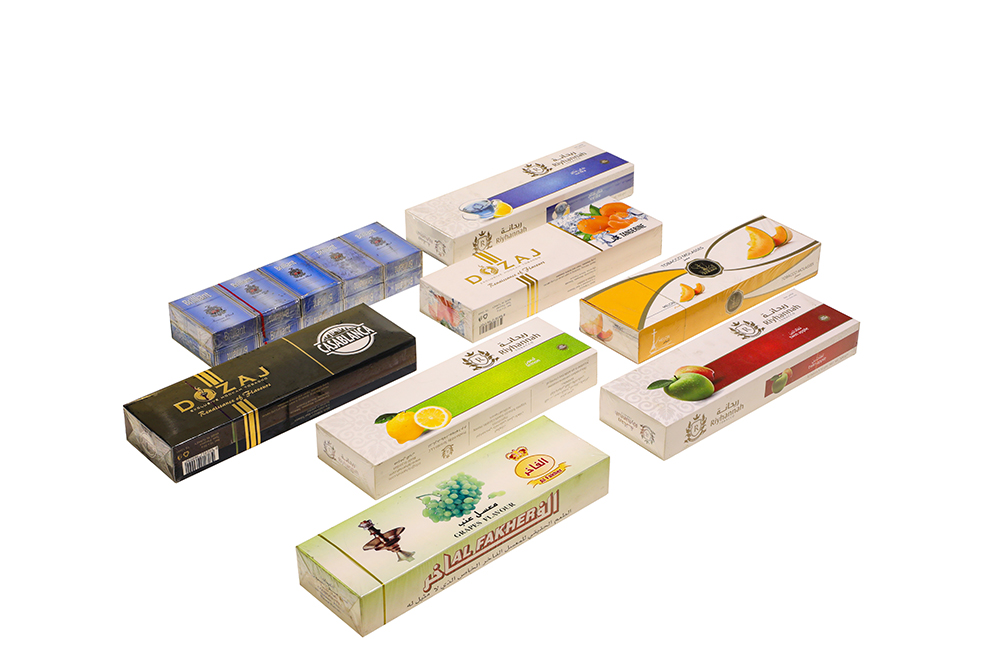

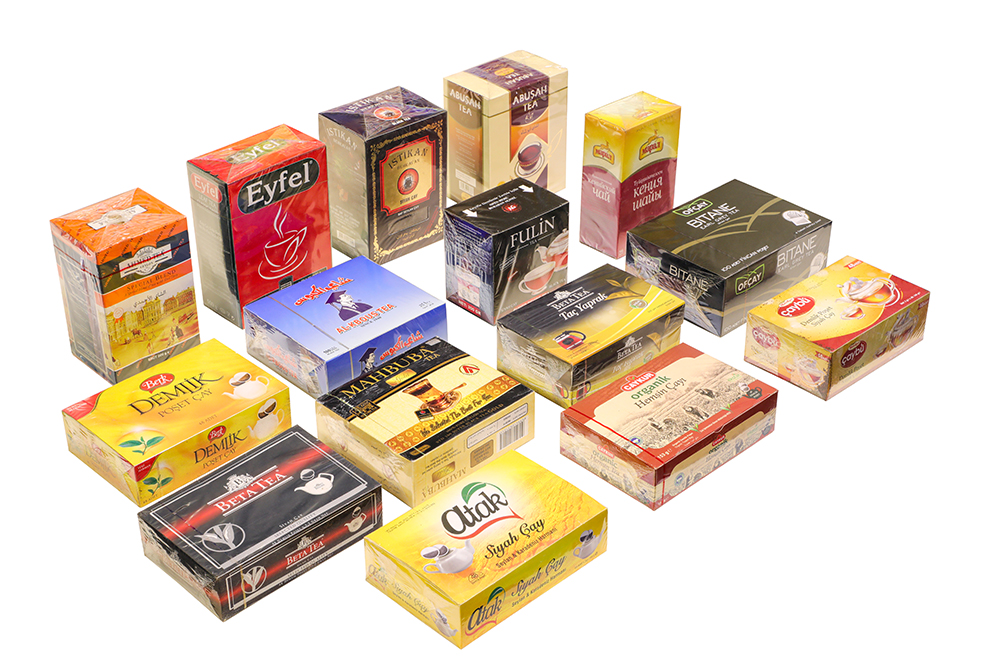

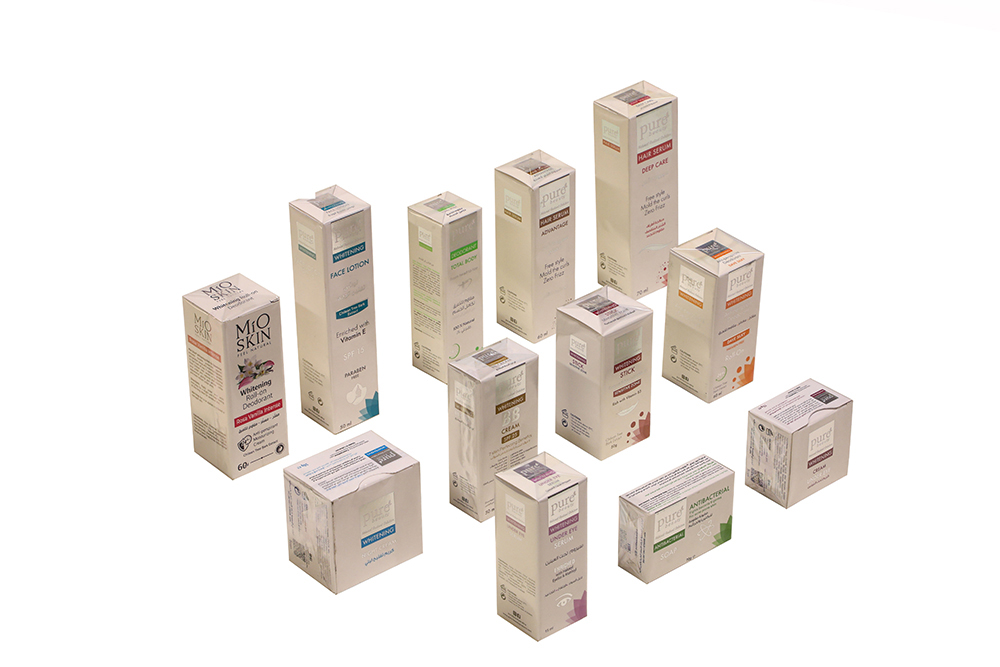

Packaged Content Examples
